Tractor. Massey Ferguson MF 50 Hi Arch , 1949 Ford 8N. I have a 1949 ( I know the title says 1948) 8N with the old style steering box.Not having the funds to purchase a newer type box,I rebuilt the old one. After rebuild I can turn the steering ONE whole turn without wheels moving.

8n ford tractor steering gear box diagram

Posted: Fri Jul 01, 2011 1:25 pm Post subject: removing the steering box on my 8n: my steering just went out on my 1953 8n tractor will it come out without taking all the dash an a bunch of other stuff off. when i try to turn one way it the steering wheel tries to come up and then when i try to turn the other way ,it tries to turn just a little. The early ('47-'48) 8N steering box had a 1/4" pipe plug on the upper right side of the box. It could also be filled by removing the nut that holds the steering wheel on and pouring the oil down the hollow steering shaft where it flowed out a cross drilled hole and over the upper bearing (very slow process). Original Ford 8N Steering Box Adjustable Late Model 8N-3503 1949-52 8N, NAN. $415.00. $104.87 shipping. or Best Offer.

8n ford tractor steering gear box diagram. Time to start putting this thing back together. The upper steering shaft gets its new lower bearing race and upper bearing. Only two parts but at least we... Ford / Tractor / Front Axle & Steering / Steering Gearboxes E1NN3N503BC - Ford 5600, 6600, 7600 Power Steering Gearbox. New- Call for Pricing. Add to Wishlist. SKU: 87486289 Category: ... 8N/NAA/600 8N3548B Steering Gearbox Assembly $ 650.00 $ 625.00. New. Customer Service. For orders, questions, or parts requests call or e-mail: ... Watch this instructional video demonstrating a complete steering gearbox replacement on a Ford 8N. Late style 8N box ——— Early style 8N box. To upgrade to the later style box you will need a steering box and both pitman arms. The early pitman arms don't fit the later box. You will also need to pick up a later model dash panel to match the steering box, or modify your old dash panel for the necessary clearance.

Posted: Mon Oct 10, 2011 11:03 am Post subject: Steering sector adjustment: I am looking at purchasing a 1950 8N tractor. The steering has been disasembled by a previous owner and has about 1/2 turn of free play. Is there a lash adjustment or is it more likely to need repalcement of worn parts? Ford - Fits: 8N (Up to SN: 216988 early 4 bolt side sector steering gear box.); Replaces: 8N3270C, 8N3305A, 8N3314D, NAA33271A * Adjustable from approximately 36" to 39-1/2" center-to-center tie rod studs.* Fits 1947-1949* Tie rod ends are sealed and permanently greased* Grease zerks are cosmetic… Ball Bearing, Steering Gear - 3/8 inch ball, used in S.67077 and S.67078 steering boxes only. Will NOT fit in OEM boxes. For tractor models 8N, NAA, Jubilee.22 required per gear box (Part No: 83424343) $0.26 Ball Bearing, Steering Gear - 3/8 inch ball, used in S.67077 and S.67078 steering boxes only. Will NOT fit in OEM boxes. For tractor models 8N, NAA, Jubilee.22 required per gear box (Part No: 83424343): $0.26

Steering gearbox for Ford tractor models: 8N. Replaces OEM part number 8N3548B. Watch this free instructional video demonstrating a complete steering gearbox replacement on a Ford 8N. The same technique can be used on a Ford Jubilee, NAA, 600, 800, 2000 4-cyl., and 4000 4-cyl. In this newest series of tractor repair videos offered online at SteinerTractor.TV Rachel takes you step by step to disassemble your dash and to ... 1939-1964 Tractor Steering Gearbox Parts. Ford Manual Steering Shaft Fits Early models with non-adjustable style steering gearbox. Ford Steering Side Gear Fits Ford 8N (SN 216989->) (Fits Adjustable Style Gearbox Only) Fits Ford NAA, Jubilee, 600, 800, 601, 801, 2000 & 4000 (4-Cyl) *NOTE: Shaft has 7 teeth- If your Shaft does not have 7 teeth ... Ford - Fits: 8N (Up to SN: 216988 early 4 bolt side sector steering gear box.); Replaces: 8N3270C, 8N3305A, 8N3314D, NAA33271A * Adjustable from approximately 36" to 39-1/2" center-to-center tie rod studs.* Fits 1947-1949* Tie rod ends are sealed and permanently greased* Grease zerks are cosmetic…

Ford 8n Not Starting Just Solenoi Yesterday S Tractors 8n Ford Tractor Ford Tractors Old Tractors

steering gearbox under the column that supports the dash and steering wheel. This unit could also be filled by removing the steering wheel nut and pouring gear oil down through the steering shaft. In September 2, 1949, the 8N-3503 steering gearbox assembly was replaced with a new beefier steering gearbox 8N-3503-B starting with serial number ...

Ford Tractor Steering Side Shaft Cover O Ring 2000 3000 4000su 2600 3600 4600su 3400 231

Ford 8N early steering gear parts. Including bearings, spring, seat, felt seals, seals, bushings, grommets, steering wheels, throttle quadrants, nuts, choke knob and choke rod assembly. tractor parts for your antique Ford tractor

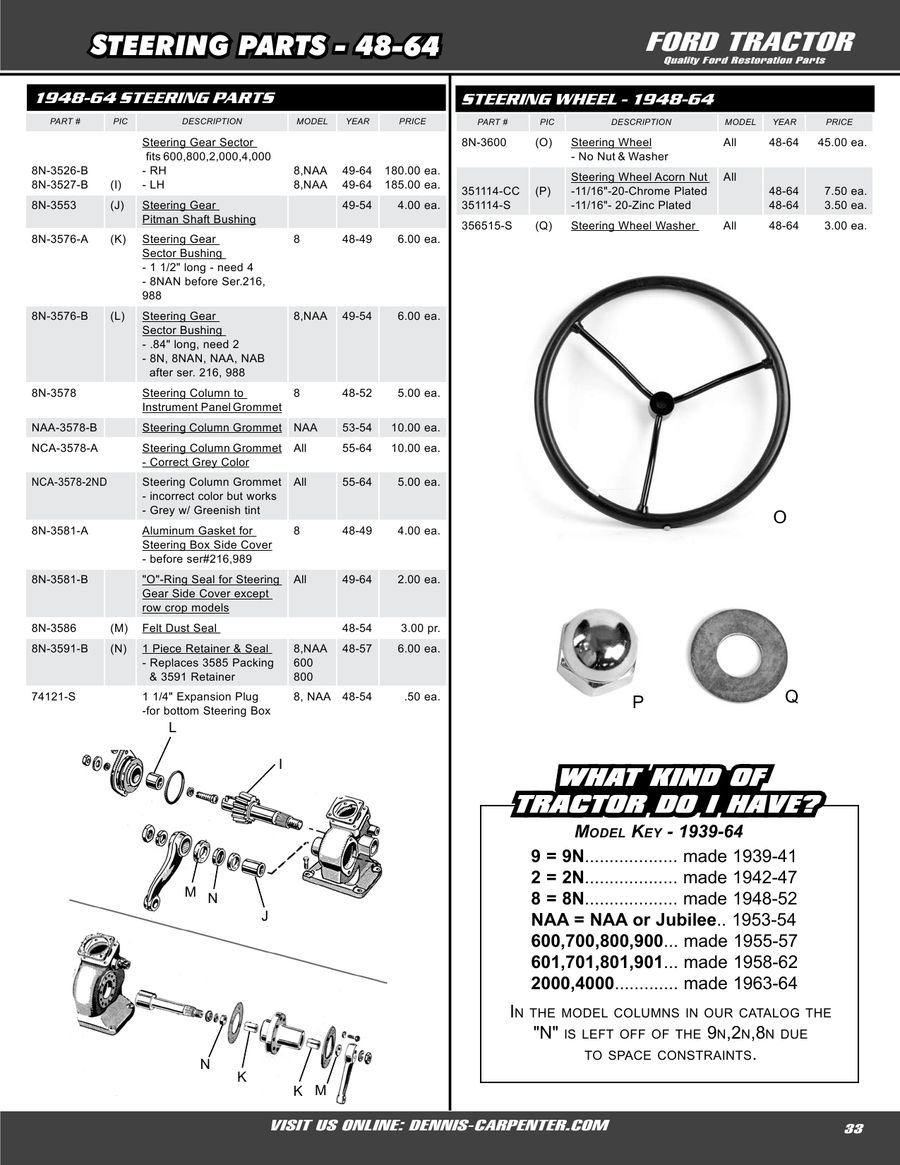

Page 33 Of Ford Tractor Restoration Parts 2008
