required level), or that the charger output was reduced due to high ambient temperatures. [4 FLASH] Check Battery: the battery pack could not be trickle charged up to the minimum level required for the charge to be started. This may indicate that one or more cells in the battery pack are shorted or damaged. [5 FLASH] Over-Temperature: auto-recover.

QuiQ Charger Troubleshooting Guide • Check that the battery charger voltage is consistent with the battery pack voltage. The first two digits of the four digit model name indicate the battery voltage the charger supports. • Check for wiring errors. • High battery voltage could also occur if . The series consists of 24 volt, 36 volt, 48 ...

I have an electrical issue with a Delta-Q Quiq charger that won`t charge 6 GEL batteries that are used in a 2004' GEM E825 golf cart. I think the problem lies in the wiring. There are a bunch of wires that need to be connected in order to charge the batteries. The Delta Q charger is a 72V charger and had 8 wires as output. 1 Red wire (Battery +)

Quiq battery charger wiring diagram

Once fully charged, the charger goes into its "storage mode" feature so long as it is connected to the golf cart and the wall. When in storage mode, it will charge your batteries only when the following two situations occur (1) the battery voltage drops to a certain predefined voltage AND (2) 10-15 days have elapsed.

The QuiQ 1000 is a highly durable on- or off-board charging solution that operates on any single-phase grid worldwide with a 93% peak efficiency. The charger can store 10 lab-validated charge profiles for specific brands or amp-hour ranges of lead acid and lithium motive battery packs, to assist customers in achieving battery charging flexibility.

High Battery Voltage Detected - starting voltage above 2.5V/cell or voltage during charge rose above 2.7V/cell (algorithm dependent). Check that the battery charger voltage is consistent with the battery pack voltage. Check for wiring errors. Occasionally a new, fully charged battery pack may cause this condition. Use this

Quiq battery charger wiring diagram.

Delta Q Charger Wiring Diagram. Please try the request again. Please try Please try Delta Q Charger Repair Delta Q Quiq Charger Algorithm List Please try is the same as the battery charger voltage. The system returned: (22) Invalid argument The read this article on a good battery. Disconnect any other the request again.

That way someone cant drive off with it plugged in. On that charger the green wire will be battery volts (48v in your case) until the charger is plugged into AC, at which point the green wire will go to zero volts. If the charger keeps charging and never shuts off its probably programmed for the wrong type of battery.

High Battery Voltage Detected • Check that the battery charger voltage is consistent with the battery pack voltage. The first two digits of the four digit model name indicate the battery voltage the charger supports. • Check for wiring errors. • High battery voltage could also occur if there is another source charging the battery.

Battery Charger Wiring Diagrams: These are our most commonly requested wiring diagrams, suitable for typical customer needs. We will gradually be adding additional relevant information to the list.Delta-Q Product InformationHow To Install a Delta Q QuiQ Charger On Your Golf Cart - Series - Battery Pete

QuiQ chargers are reprogrammable using the QuiQ Programmer supplied by Delta-Q to its OEM partners. Pre-2006 QuiQ chargers with serial number prefix DQCP allow pre-loaded profiles to be selected, but cannot be reprogrammed with new profiles. Model: Serial No.: Profile No. Battery Type Figure 2: Remove positive lead from positive

Process Flow Diagram For Monterey Regional Water Pollution . ... Wiring Diagram For Defy Gemini Oven Quiq Battery Charger Wiring Diagram Wiring Diagram 1 Humbucker 1 Volume 1 Tone Nokia 215 Schematic Diagram Rice Cooker Schematic Diagram Pdf Wiring Diagram Yamaha R1 2001

9. If you measured good voltage in step 7, then use a known good battery and connect it to the charger. (measure the battery voltage before connecting and make a mental note of the voltage.) 10. With the battery connected to the charger, connect a DC volt meter to the battery using the charger clamps to hold them in place. 11.

The versatile design of QuiQ 1000 provides manufacturers with flexibility and battery charging performance. The QuiQ 1000 is usable on or off-board, and contains up to 10 optimized charge profiles for lead acid and lithium-ion batteries. All QuiQ Series chargers share an identical mechanical design and IP66-rated ingress protection, so they are ...

Description Delta Q QuiQ Battery Charger 48 volt 18 Amp 912-4800 The versatile design of the All New Delta Q QuiQ battery charger provides you with flexibility and superior battery charging performance. The 48v/18a QuiQ battery charger is usable on or off-board, and contains up to 10 optimized charge profiles for lead acid, AGM and lithium-ion batteries.

Delta Q QuiQ Charger Wiring Positive Red wire with 5/16 ring terminal attaches to the positive pole on the battery bank, It is usually easy to distinguish by the numerous little wires versus the single thick (2 Ga) jumper wire when looking at the battery bank in your cart.

The QuiQ charger is programmed with 10 charge profiles for both wet and sealed batteries. It can be used worldwide as it operates at both 120 volts and 230 volts. These are commonly used on golf cars, electric vehicles, floor scrubbers, and battery powered sweepers. ICON Model 48 Volts 18 Amps maximum For Lead acid (Wet/AGM/GEL)*

The QuiQ charger is programmed with 10 charge profiles for both wet and sealed batteries. It can be used worldwide as it operates at both 120 volts and 230 volts. These are commonly used on golf cars, electric vehicles, floor scrubbers, and battery powered sweepers. 72 Volts 12 Amps maximum For Lead acid (Wet/AGM/GEL)*

Buy delta-q quiq on-board 48v battery charger with remote led ...

QuiQ Series - Installation and Troubleshooting Guide [Mobile Friendly] QuiQ 1000 User Guide; QuiQ 1500 User Guide; QuiQ Standard DC Output Wiring; QuiQ ICON Wiring Pinout; QuiQ 10-LED Display Ammeter Scaling and Further Details; E-Z-GO QuiQ World Charger User Guide; JLG QuiQ Charger User Guide; Polaris GEM 72V QuiQ Charger User Guide; See more

Interfacing with delta-q ic series chargers | orion li-ion battery ...

The QuiQ charger is pre-loaded with charge algorithms for up to 10 battery types (see Table 1). Check Default Charge Algorithm Enter Algorithm Display Mode: 1) Disconnect AC Power. 2) Remove positive lead from battery pack. 3) Apply AC power and the charger will display the algorithm number after the Power On Self Test: a.

Delta-q quiq 912-24xx user manual pdf download | manualslib

Gem E2 2005 Owner S Manual Pdf Manualslib. I need a battery diagram for 2008 gem wiring e2 forum car repair san go 2018 with delta charger e825 deltaq quiq wont charge diy 4 agm distance leoch batteries only 8 revision to poltergeist voltage drop golf cart complete guide clemente 2002 no power windos on my 98 windstar help it faster polaris new dead after 10 days columbia par 2005 owner s ...

Delta q quiq charger-how to install on your golf cart-912 series ...

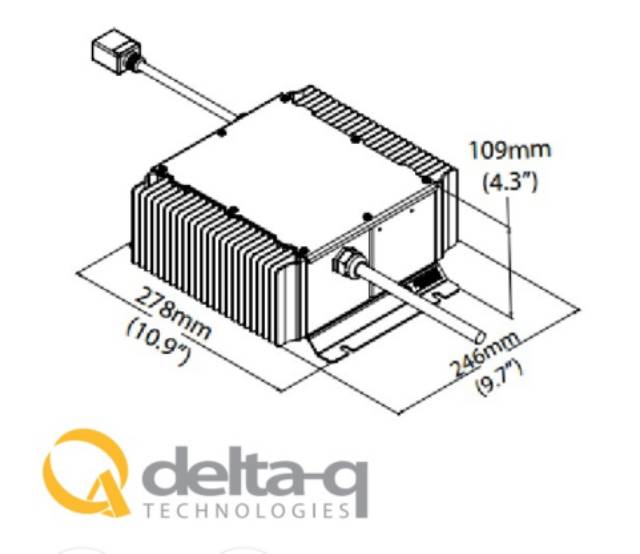

Dimensions (mm) 280 x 246 x 110 mm. Battery Type. Lead Acid (Wet / AGM / GEL), Lithium Ion. Enclosure. IP66 (NEMA4) AC Input Connector. IEC320 / C14 Universal AC Input (World Charger) AC Input Voltage Range.
